LCV 4~126 Multi Strand End Glow PMMA Fiber Optic Lighting Cable
OVERVIEW
LCV multi-stranded end glow fiber optic lighting cable,also called end glow fiber optic cable,end emitting fibre cable, consists of multiple 0.75mm PMMA bare fibers, sheathed with a black PVC jacket for mechanical protection and light transmission. The LCV end glow fiber cables are normally fixed with a fiber optic end fittings(fiber optic end emitting fixture) or are used for decorative applications such as fiber optic star ceilings,fiber optic pool lighting.
SPECIFICATION
- Core Diameter:1000 um
- Wavelength Range:525 - 650 um
- Fiber Core Material:Plastic
- Cable Length:100 m
- Item Type:Fiber Optic Lights
- Core Material:PMMA
- Core Diameter:750 um
- Sheath Material:Black PVC
- Fiber Counts:4~126
- Working Temperature:-40 ~ +70 ℃
- Colour:changable
- Application:Star ceiling, swimming pool, garden or underground
- Compatable With:LED or Metal Halogen light source
APPLICATIONS

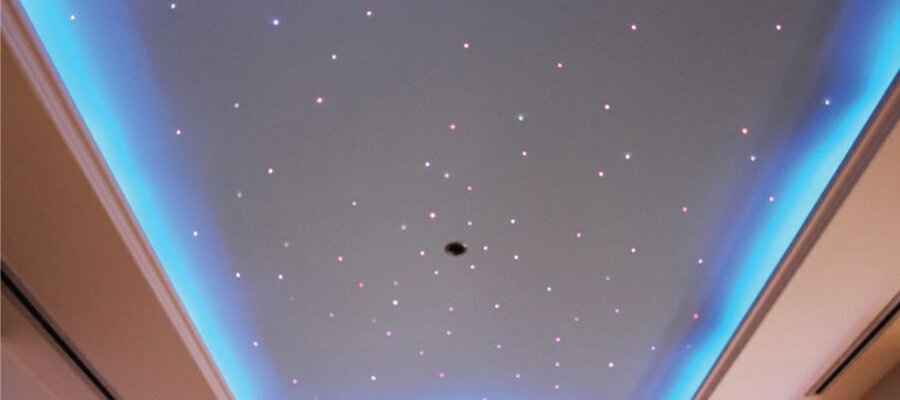

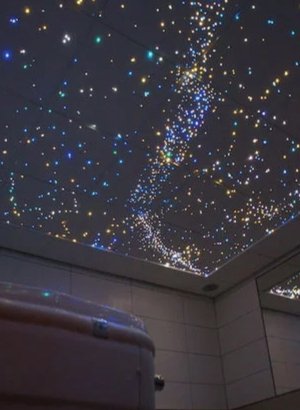

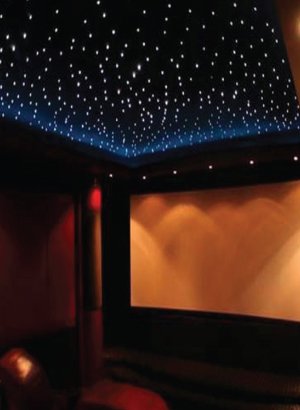

- Star effect for ceiling and swimming pool bottom
- Artistic adornment in graphical and 3D artistic design
- Widely used in museum showcases and jewellery display
- Interior fiber optic light decoration of KTV, pubs, coffee houses, hotels and restaurants
- Decorative lighting in the park and fairground
- Underground lighting
KEY FEATURES
- Waterproof
- Durability
- Good flexibility
- Better end-lighting effect than single core fiber or cable
- No heat or electricity transfer
- Light lossless
- Unbreakable and minium bend radius
- Better anti-crunch, anti-stretch, anti-grinding, and anti-aging performances brought by the black PVC jacket, extending operation life
- Varied multi strands cable end-lighting effect created by cables (with different number of fibers)of different diameters
